VCI10-UH is a HART® communication interface for PCs with USB type-A standard connection. It allows HART® network connection, making comission, operation, maintenance and calibration processes, diagnosis and data acquisition easier for any HART® device.

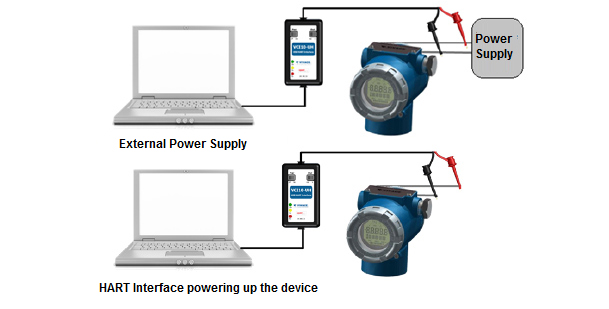

The interface can operate on network or stand-alone modes, supplying device with current or voltage. This characteristic is very useful in bench work or initial configuration, when the HART® network is not yet established.
It works with low power, isolated and compatible with HART® 7 protocol. Its power is supplied by PC USB port, with no need for any kind of external power source.
Check out our tutorials in Vivace's channel on YouTube!
| Power Supply | USP port – Consumption < 50mA/5Vdc |
| Output Signal | 24 Vdc or 3.9 mA |
| HART® Protocol | Certified Modem HART® |
| Storage Humidity | 0% to 95% relative humidity |
| Operation Temperature | 0°C to 50°C |
| Storage Temperature | -40°C to 85°C |
| Insulation | 1500 Vac between device and PC |
| Hazardous Area Certification | None |
| Operational System | Windows® 98, 2000, XP, Vista, 7, 8 and 10; 32 and 64 bits |
| HART® Connection | Two polarized clips |
| Dimension (mm) | 72 x 42 x 23 |
