VHC10-F

VHC10-F

HART® to 4-20 mA Field Converter and Indicator

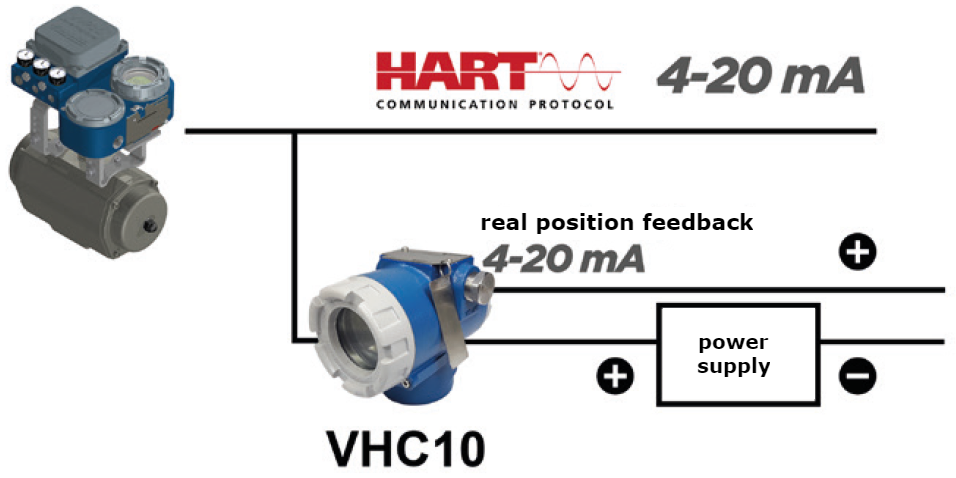

VHC10-F was projected to create an additional 4-20 mA output current channel, offering another analog monitoring to devices that do not own this feature (valve positioners, for instance) or that need an additional variable monitoring on its process.




The converter is powered by a 12 to 45 Vdc voltage, generating a 4-20 mA current channel (according to NAMUR NE43 standard). Its main function is monitoring any variable from another HART® device (independent of its version), configured by user and extern that variable through the current channel.


VHC10-F model has also the great advantage of being a HART® indicator (regardless of version: HART® 5, 6 or 7) for up to 3 devices/variables. In this case, VHC10 communicates with HART® device, read the variable value and display it at its LCD. VCH10 must be powered externally and can be configured to work as a Primary or Secundary HART master.



The DTM Library for HART devices can be found on:
HART





Power Supply 12 to 45 Vdc
Output Current 4-20 mA (NAMUR-NE43)
Certified HART® Modem
Temperature Limits -40°C to 85°C
Process Connection Field Mounting
Env. Temperature Limits -40 to 85°C
Protection IP67
Housing Material Aluminum
Weight 600 g

Catalogo

Catálogo | Português

DOWNLOAD

Catalog | English

DOWNLOAD

Catálogo | Español

DOWNLOAD

Manual

Manual | Português

DOWNLOAD

Manual | English

DOWNLOAD

Manual | Español

DOWNLOAD

DDL / GSD

Readme

DOWNLOAD

Warranty Term

VIVACE PROCESS INSTRUMENTS

DOWNLOAD

Main benefits:

  • HART® 7 Communication Protocol
  • Analog Channel for Monitoring
  • Primary or Secundary HART Master
  • Configured Variable Monitoring
  • Up to 3 Variables for LCD Indication
  • Work Range Configuration
  • Operation Limits Alarms
  • Power Supply 12 to 45 Vdc
  • Analog Output 4-20 mA NAMUR NE43
  • Operation Temperature -40 to 85 °C
  • EDDL and FDT/DTM Tools Compatibility
